GIGABYTE RTX 4060 AERO VRM flaw causes MOSFET burnout

NicoGG 2 min read

GIGABYTE RTX 4060 AERO graphics cards suffer recurrent burns due to a VRM design flaw. Repair specialists trace the issue to inconsistent current- sense networks.

GIGABYTE RTX 4060 AERO VRM flaw causes MOSFET burnout
PC HARDWARE

GIGABYTE 4060 AERO graphics cards are suffering from a recurring burn issue that stems from a flaw in the voltage regulator module design. This defect matters to owners of this specific model because it can permanently damage the card and the surrounding motherboard area. Brazilian GPU repair specialists identified the root cause, shifting blame away from the initially suspected HDMI port. Buyers of this card should be aware of this potential hardware failure mode.

GIGABYTE GeForce RTX 4060 AERO graphics card
The GIGABYTE GeForce RTX 4060 AERO is facing reports of recurrent burn issues.

Repair specialists identify power delivery circuit as root cause

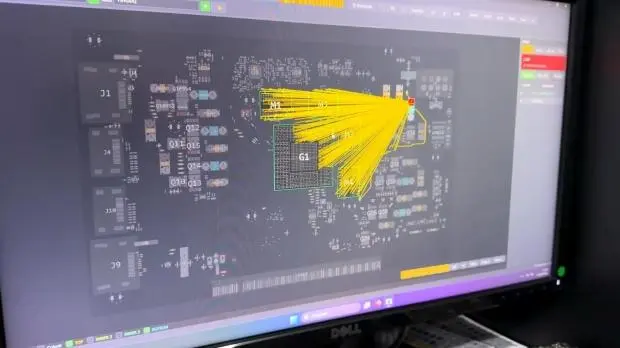

The investigation focused on the GIGABYTE GeForce RTX 4060 AERO, a specific variant of the RTX 4060. Repair technicians Paulo Gomes and SidNelson analyzed multiple damaged units to understand the failure pattern. They compared the faulty boards against a working GIGABYTE card and an Inno3D RTX 4060 to isolate the problem. The analysis revealed that the issue is internal to the card's power delivery system rather than an external connection fault.

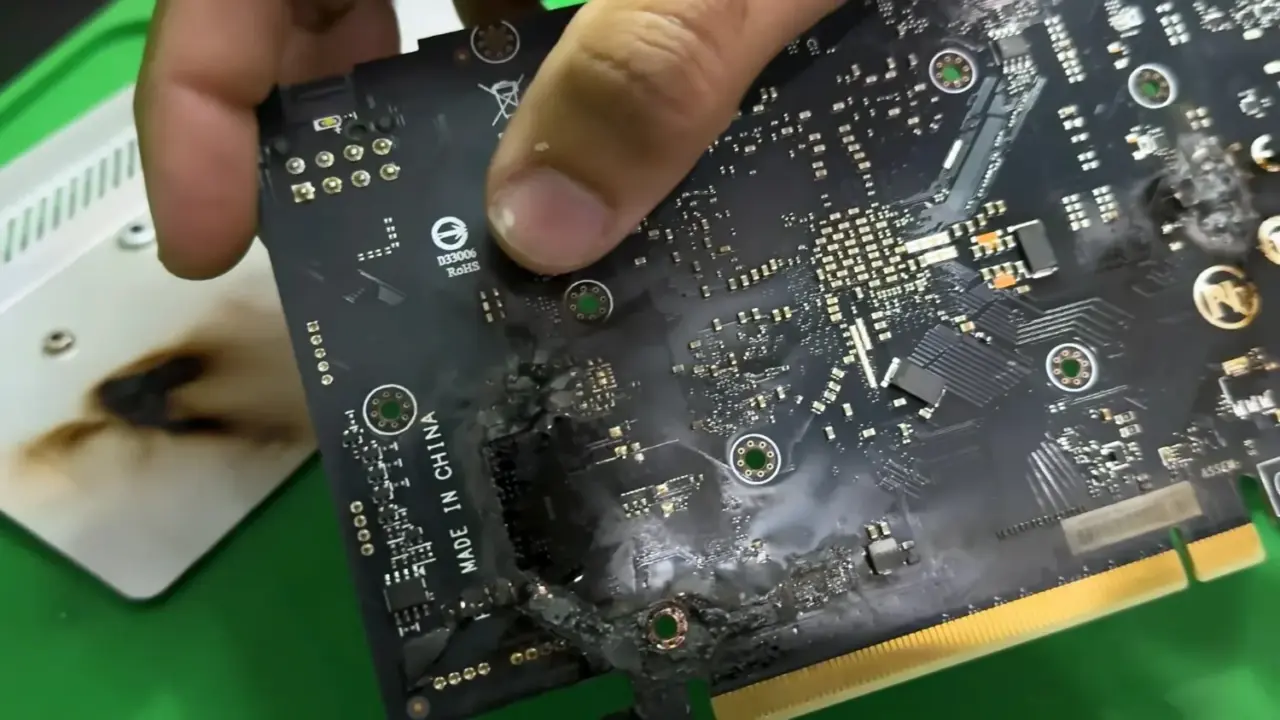

The core technical failure lies in the VRM current-sense network. The resistor and capacitor values across the four feedback paths feeding the PWM controller were inconsistent. This inconsistency caused uneven load balancing across the VRM phases. One MOSFET became overloaded while the others remained within specifications. The overloaded component eventually shorted and burned, creating heavy carbonization on the PCB near the HDMI output.

Initial suspicions pointed to the HDMI port as the source of the burns. The repair specialists traced the issue back to the VRM design flaw instead. The damaged boards show distinct signs of PCB carbonization near the video output. This physical evidence confirms that the power delivery circuit is the primary point of failure. The defect is not related to the video signal transmission itself.

GIGABYTE has not issued a public response regarding these reports. It remains unclear whether this defect is isolated to a specific production batch or affects a wider range of units. The lack of official comment leaves owners without confirmed guidance on recalls or repairs. The situation highlights a significant manufacturing variance in this specific GPU model.

Source: TweakTown
