Off-grid communication is getting a new affordable option with the ThinkNode M9, a handheld device designed for users who need to stay connected without relying on cellular networks. This device matters because it combines long-range mesh networking with standard location services in a portable form factor, making it suitable for field work or remote travel where signal is unreliable. Buyers looking for a dedicated tool for offline coordination will find this device offers a distinct alternative to satellite messengers or standard smartphones.
Handheld unit combines LoRa protocols with multi-constellation GNSS

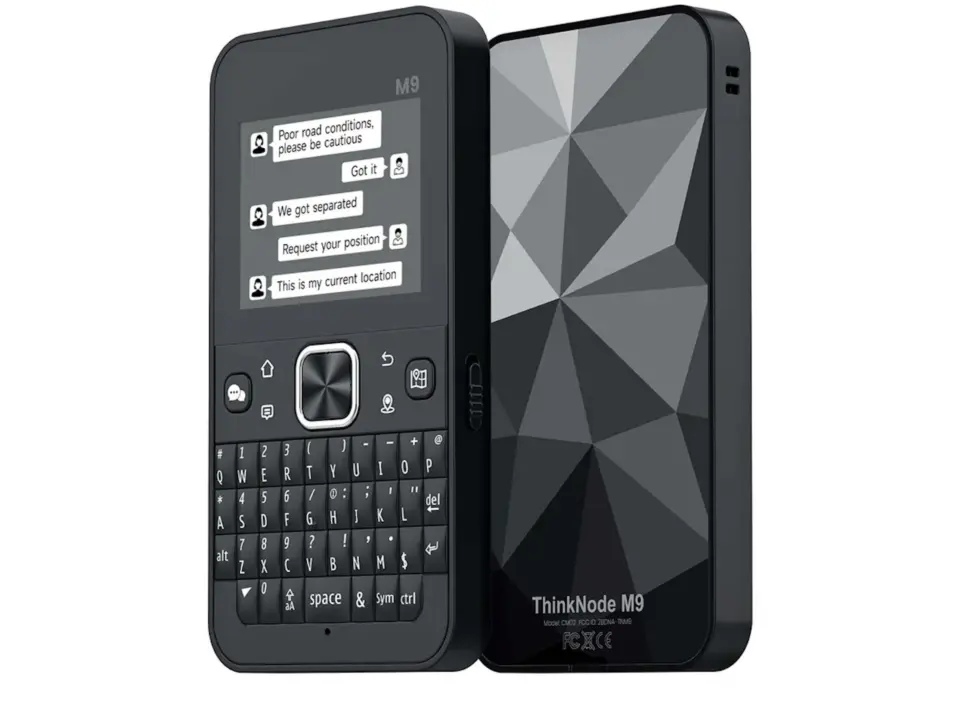

Elecrow introduced the ThinkNode M9 as a specialized handheld unit built around the ESP32-S3 microcontroller. The system pairs this processor with a Semtech LR1110 wireless module to handle the heavy lifting of data transmission. This hardware configuration allows the device to operate independently of traditional cellular infrastructure by utilizing LoRa and MeshCore protocols for peer-to-peer mesh networking.
Specifications
- Processor: ESP32-S3
- Wireless Module: Semtech LR1110
- Display: 2.4-inch LCD (240 x 320 pixels)
- Battery: 2,300 mAh
- Connectivity: LoRa, MeshCore, Bluetooth, 2.4 GHz Wi-Fi
The physical design centers on a 2.4-inch LCD display with a resolution of 240 x 320 pixels. A physical keyboard is integrated into the chassis to facilitate text entry in the field. The unit measures 126 x 67 x 10.3 mm and houses a 2,300 mAh battery to support its operations.
Connectivity extends beyond mesh protocols to include Bluetooth and 2.4 GHz Wi-Fi for local device pairing. Location tracking is handled by an integrated multi-constellation GNSS receiver that supports GPS, Galileo, GLONASS, and BeiDou signals. The device also includes an onboard compass for navigation assistance. It is offered in two frequency variants, 868 MHz and 915 MHz, to comply with regional radio regulations.
Elecrow rates the battery life for two to three days of standby time under normal usage conditions. The device is available directly from the manufacturer for 75 USD (around $75.00). This pricing applies to global availability for both frequency variants.
The ThinkNode M9 represents a practical entry into the low-cost mesh networking hardware market. It provides a complete package of communication, location, and input tools for a price point under $75. Users can purchase the device immediately through the manufacturer's channels.
Source: Elecrow ThinkNode M9, NotebookCheck
